Our fixed surface mount bollards are designed for traffic control situations or property and asset protection. Manufactured from heavy wall mild steel tube with fully welded base plates, these bollards are able to take the hard knocks. Suitable for installation into any concrete surface.
All our bollards are supplied complete with necessary fixings and are available in:
-
A hot dip galvanised finish (eg. C63SM)
-
A hot dip galvanised with a powder coat finish (eg. C63SM-G)
|

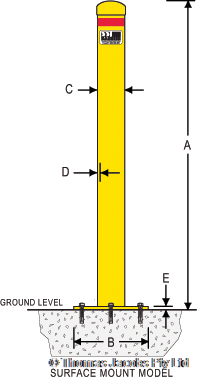

Code |
Height |
Base |
Width |
Thickness |
Weight |
Price |
|
C63SM |
900 |
150 |
63.5 |
1.6 |
4 |
66.90 |
|
C63SM-G |
900 |
150 |
63.5 |
1.6 |
4 |
56.90 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C90SM |
900 |
225 |
90 |
5.0 |
9 |
165.10 |
|
C90SM-G |
900 |
225 |
90 |
5.0 |
9 |
145.10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C140SM |
1200 |
300 |
140 |
5.0 |
23 |
311.00 |
|
C140SM-G |
1200 |
300 |
140 |
5.0 |
23 |
275.00 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C165SM |
1300 |
350 |
165 |
5.0 |
34 |
393.50 |
|
C165SM-G |
1300 |
350 |
165 |
5.0 |
34 |
332.60 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C220SM |
1300 |
400 |
220 |
6.4 |
45 |
567.00 |
|
C220SM-G |
1300 |
400 |
220 |
6.4 |
45 |
502.20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
